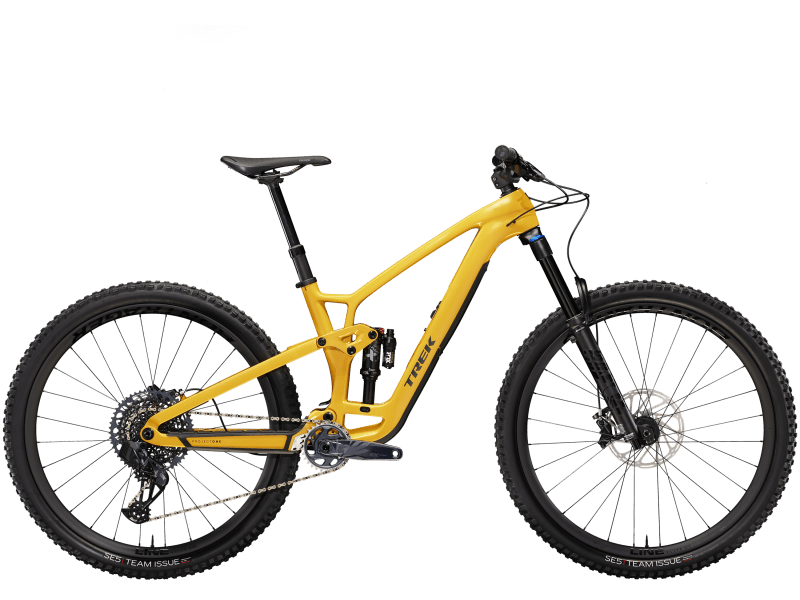

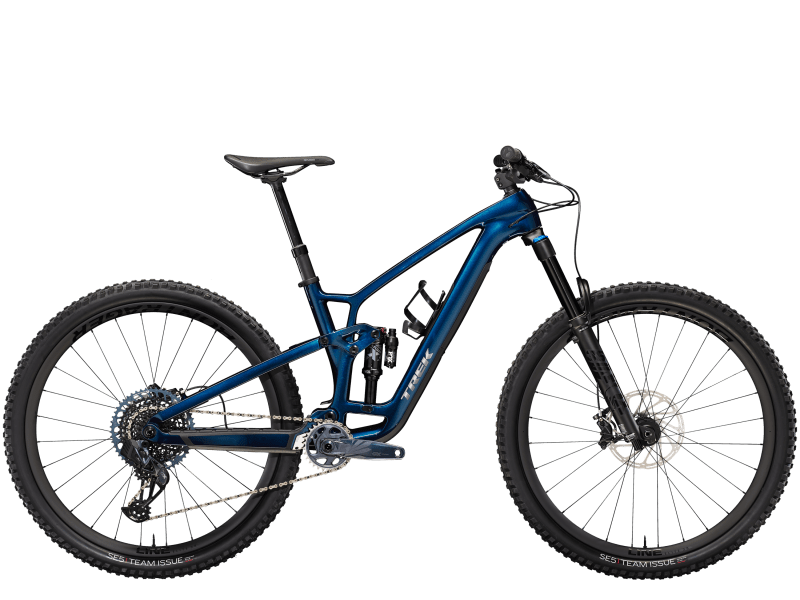

Name: Trek Fuel EX 9.8 GX AXS Gen 6
Brand: Trek
SKU: 5276821
Price: 5999.99 USD
Availability: InStock

You want a full suspension ride that can handle anything you throw its way. You want the vibration damping benefits of a carbon frame and wheels, rock-gobbling premium suspension, and appreciate when you can keep your setup clean and minimalist with wireless 12-speed shifting.

A light and stiff carbon frame with a full FOX Performance suspension package that turns chunky rock gardens into smooth sailing. Carbon wheels that keep weight down while offering stiff and reliable tracking. Plus, the wireless shifting of SRAM GX AXS, and tubeless hoops and tires so you can spend less time fixing flats. Finally, you'll find adjustable geometry and in-frame storage for keeping your setup dialed just for you.

Fuel EX 9.8 is the evolution of years of trail riding, with longer front geometry for taking on steep descents, and a steeper seat tube for hammering back up to do it again. Its carbon frame keeps things light, and SRAM GX AXS shifting takes things up a notch for those who want the latest tech.

Its lightweight carbon frame and progressive geometry are built to tackle steep and gnarly descents and punchy climbs alike
It comes with light and stiff carbon wheels that make quick work of technical terrain and keep you on your line, even when things get hairy
You get the latest technology in SRAM's workhorse GX groupset, with wireless AXS shifting
With the adjustable angle headset (angled cups sold separately) and Mino Link, you can choose from six different geometry configurations
We expanded our size range to ensure a better fit for all riders, and use the best-fitting wheels for each frame size: XS frames get 27.5˝ wheels, S frames get to choose between 27.5˝ or 29˝, and sizes M and up get 29˝ wheels

Frame	OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel
Fork	Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 150mm travel
Shock	Fox Performance Float X, 2-position damper, 185mm x 55mm
Max compatible fork travel	160mm

Wheels

Wheel front	Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Wheel rear	Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle
Skewer rear	Bontrager Switch thru axle, removable lever
*Tire	Size: XS , S Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 27.5x2.50''
*Tire	Size: S , M , ML , L , XL Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50''
Tire part	Bontrager TLR sealant, 6oz
Rim strip	Bontrager TLR
Max tire size	Frame: 29x2.50" (XS & S: 27.5x2.50"), Fork: See manufacturer

Drivetrain

Shifter	SRAM GX Eagle AXS, 12 speed
Rear derailleur	SRAM GX Eagle AXS
Crank	SRAM GX Eagle, DUB MTB Wide, 30T, 55mm chainline, 170 length
Bottom bracket	SRAM DUB MTB Wide, 73mm, BSA threaded
Cassette	SRAM Eagle XG-1275, 10-52, 12 speed
Chain	SRAM GX Eagle, 12 speed
Max chainring size	1x: 34T round, 32T oval, min 28T

Components

Saddle	Bontrager Arvada, austenite rails, 138mm width
*Seatpost	Size: XS , S Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm length
	Size: M , ML Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length
	Size: L Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length
	Size: XL Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length
*Handlebar/stem (integrated)	Size: XS , S Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 35mm stem length
*Handlebar/stem (integrated)	Size: M , ML , L , XL Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 45mm stem length
Grips	Bontrager XR Trail Elite, nylon lock-on
Headset	Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible
Brake	SRAM Code R 4-piston hydraulic disc
*Brake rotor	Size: XS , S , M , ML , L , XL SRAM CenterLine, 6-bolt, round edge, 180mm
*Brake rotor	Size: M , ML , L , XL SRAM CenterLine, 6-bolt, round edge, 200mm
Rotor size	Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer

Accessories

Battery	SRAM eTap battery pack (with charger)
Bag	Bontrager BITS Internal Frame Storage Bag

Weight

Weight	M - 14.15 kg / 31.21 lbs (with TLR sealant, no tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.

size-table
Size	Rider Height	Inseam
XS	145 - 155 cm 4'9" - 5'1"	69 - 73 cm 27" - 29"
S	155 - 165 cm 5'1" - 5'5"	74 - 78 cm 29" - 31"
M	165 - 176 cm 5'5" - 5'9"	79 - 83 cm 31" - 33"
M/L	173 - 180 cm 5'8" - 5'11"	81 - 86 cm 32" - 34"
L	177 - 188 cm 5'10" - 6'2"	84 - 89 cm 33" - 35"
XL	188 - 195 cm 6'2" - 6'5"	89 - 91 cm 35" - 36"

Trek Fuel EX 9.8 GX AXS Gen 6

Pre-Order: While we don't have this bike in-store it is available to order from our warehouse. Please email or call 802-422-9050 to confirm the ETA of your desired size and color.
